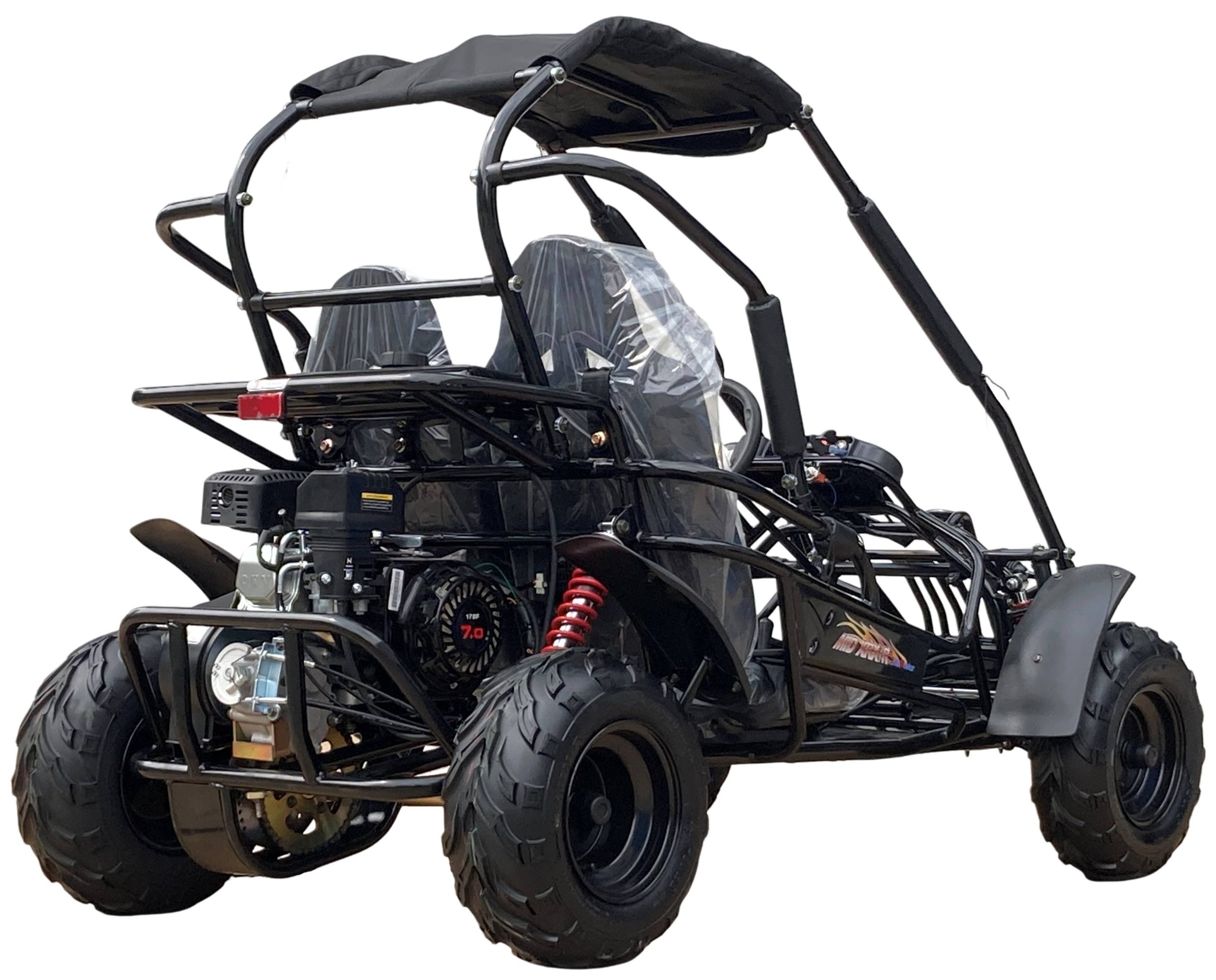

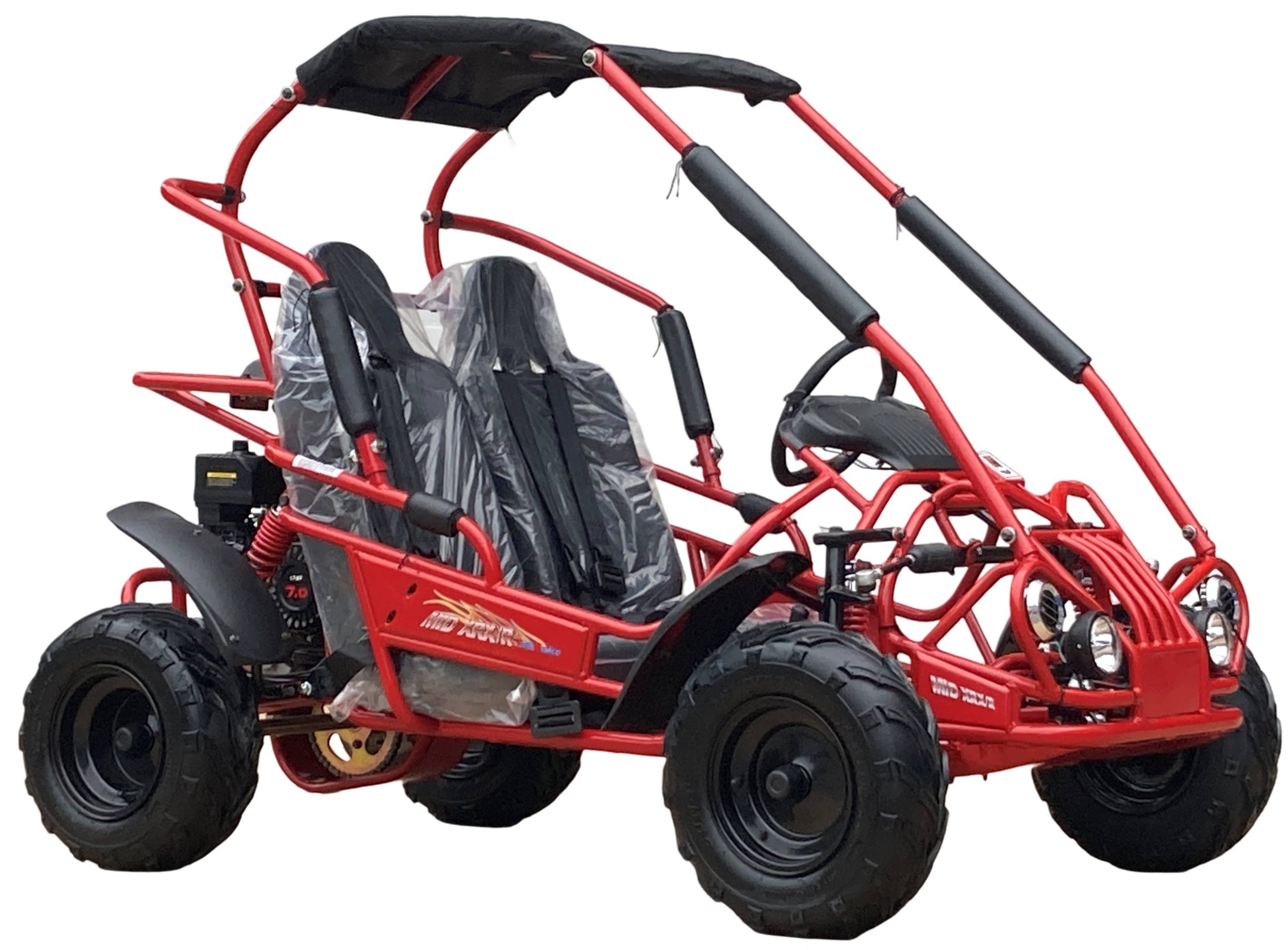

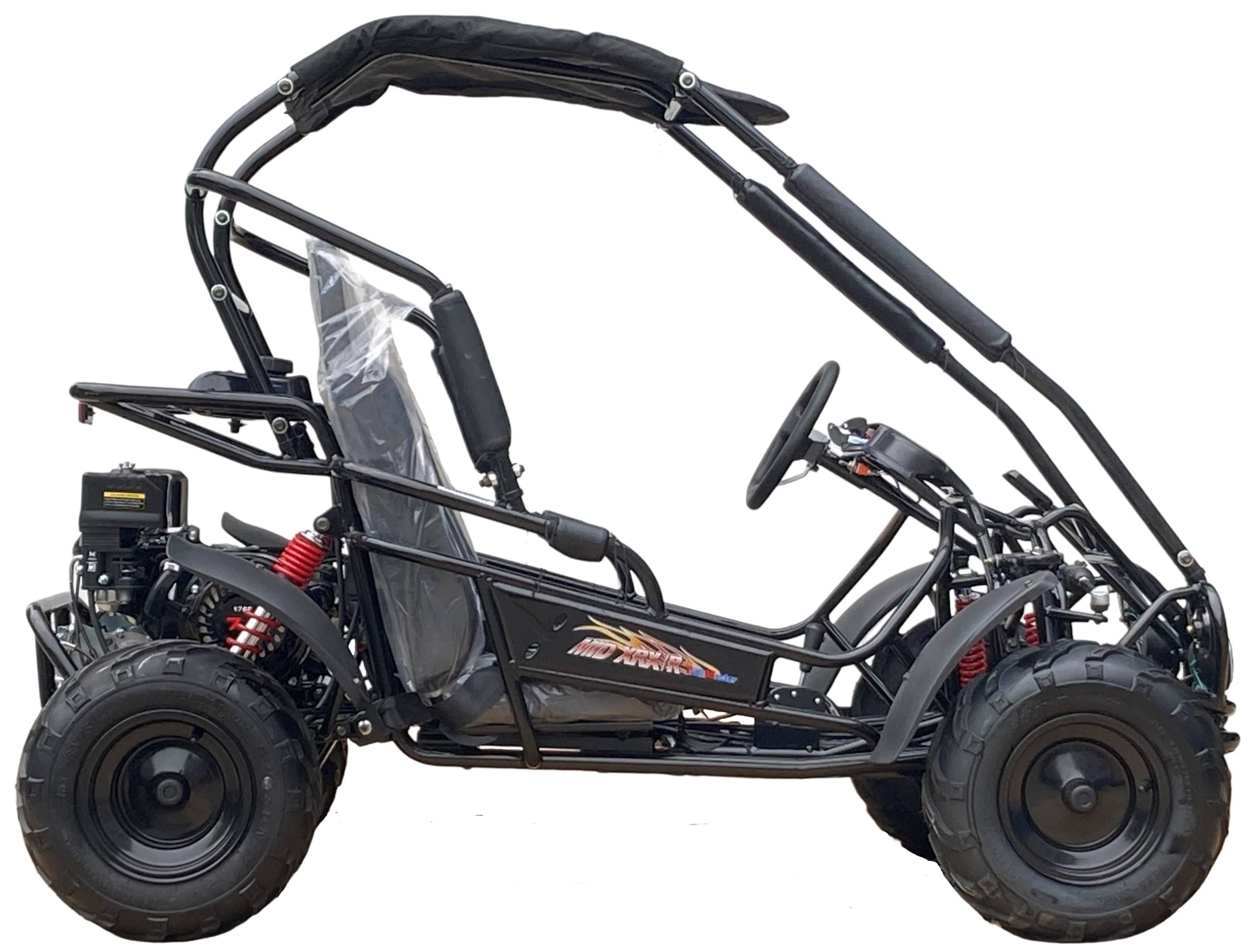

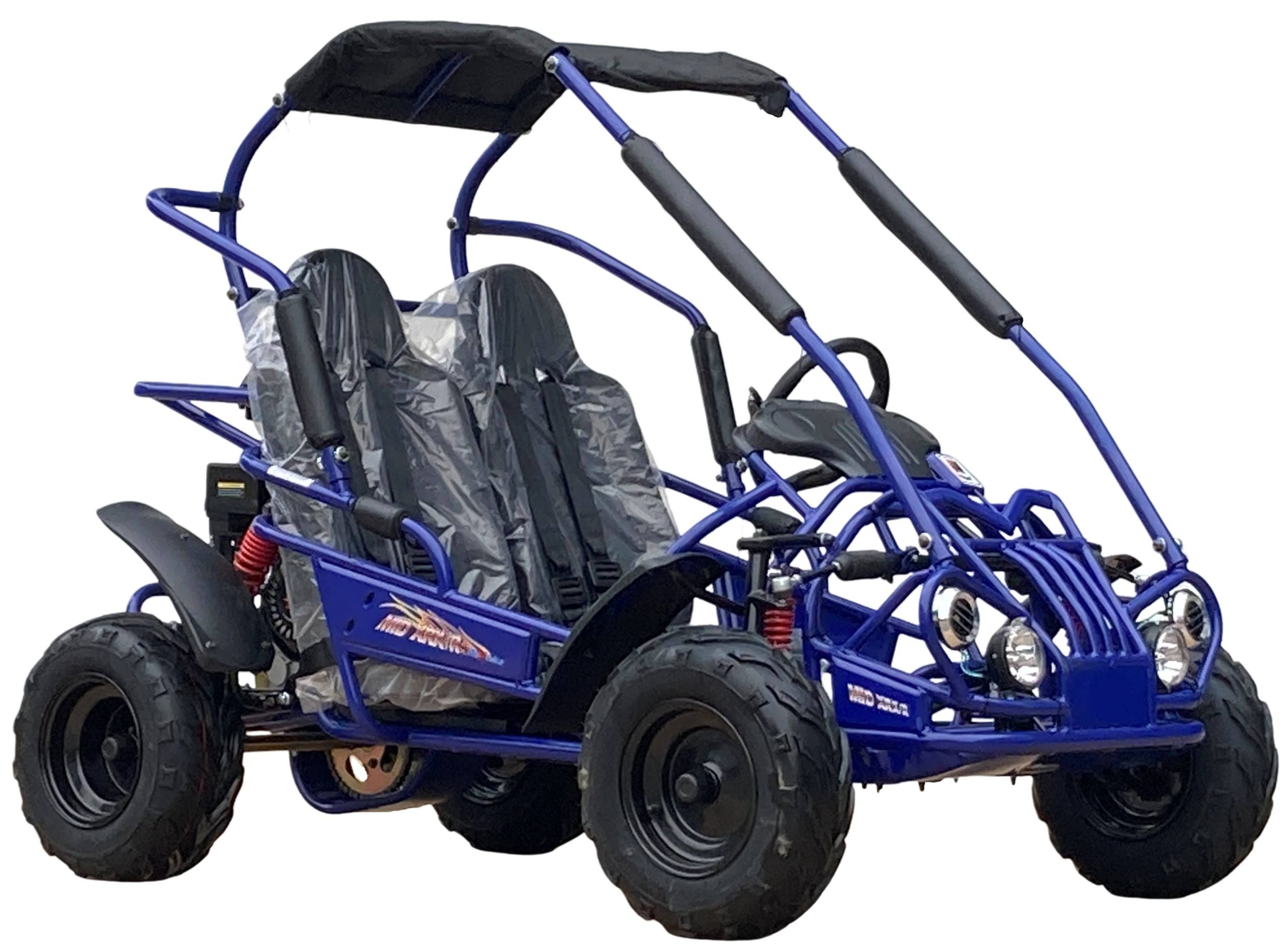

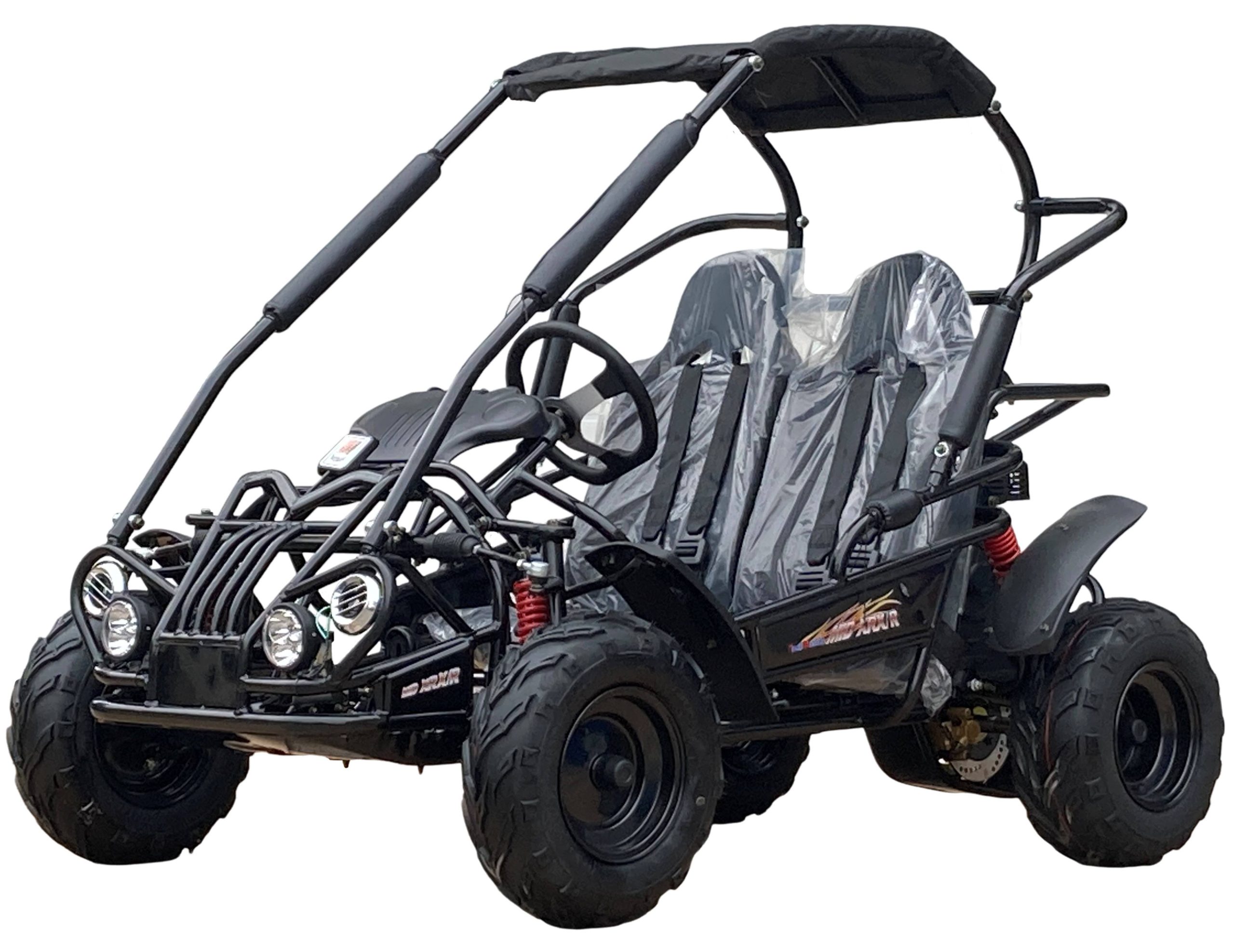

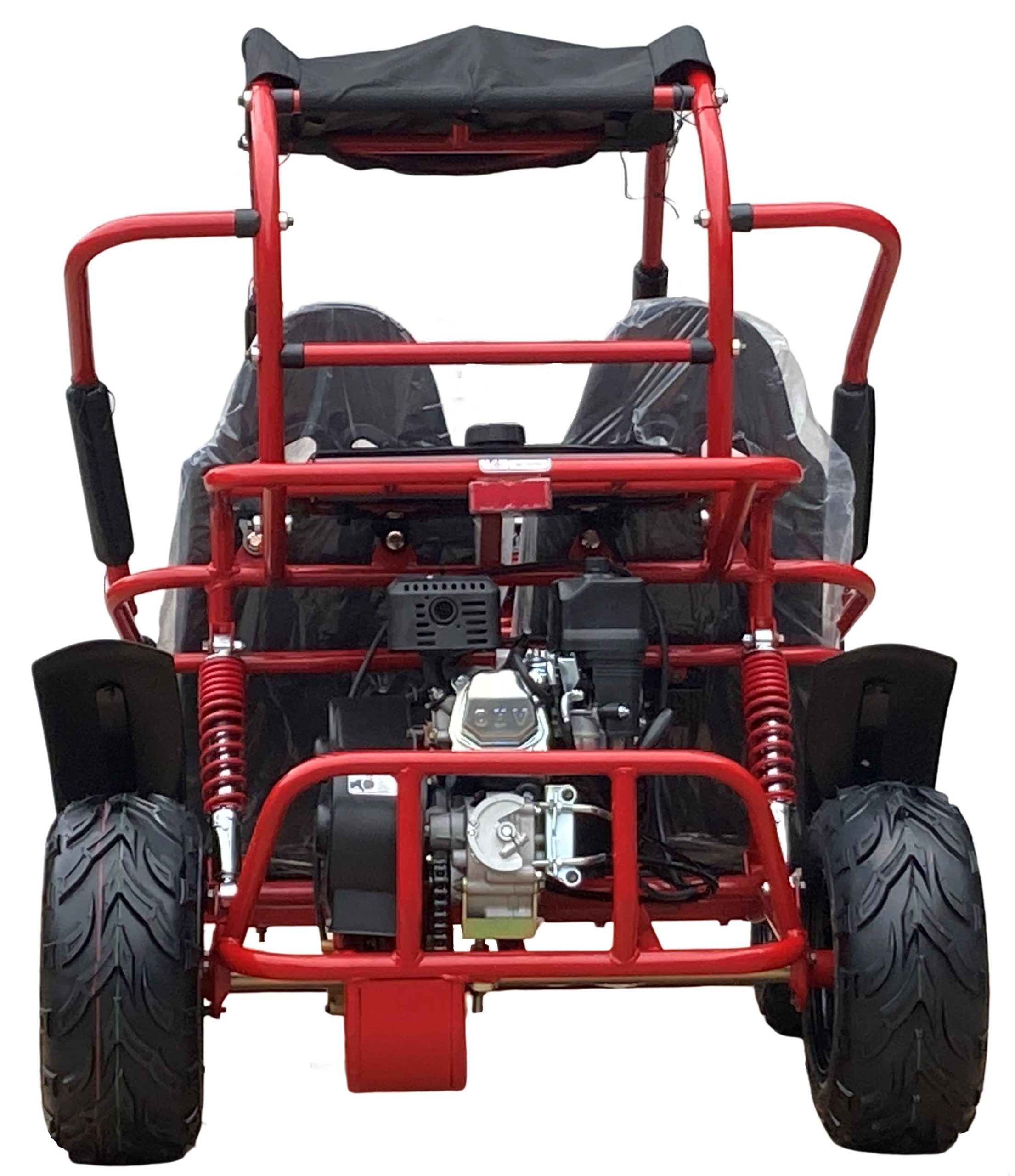

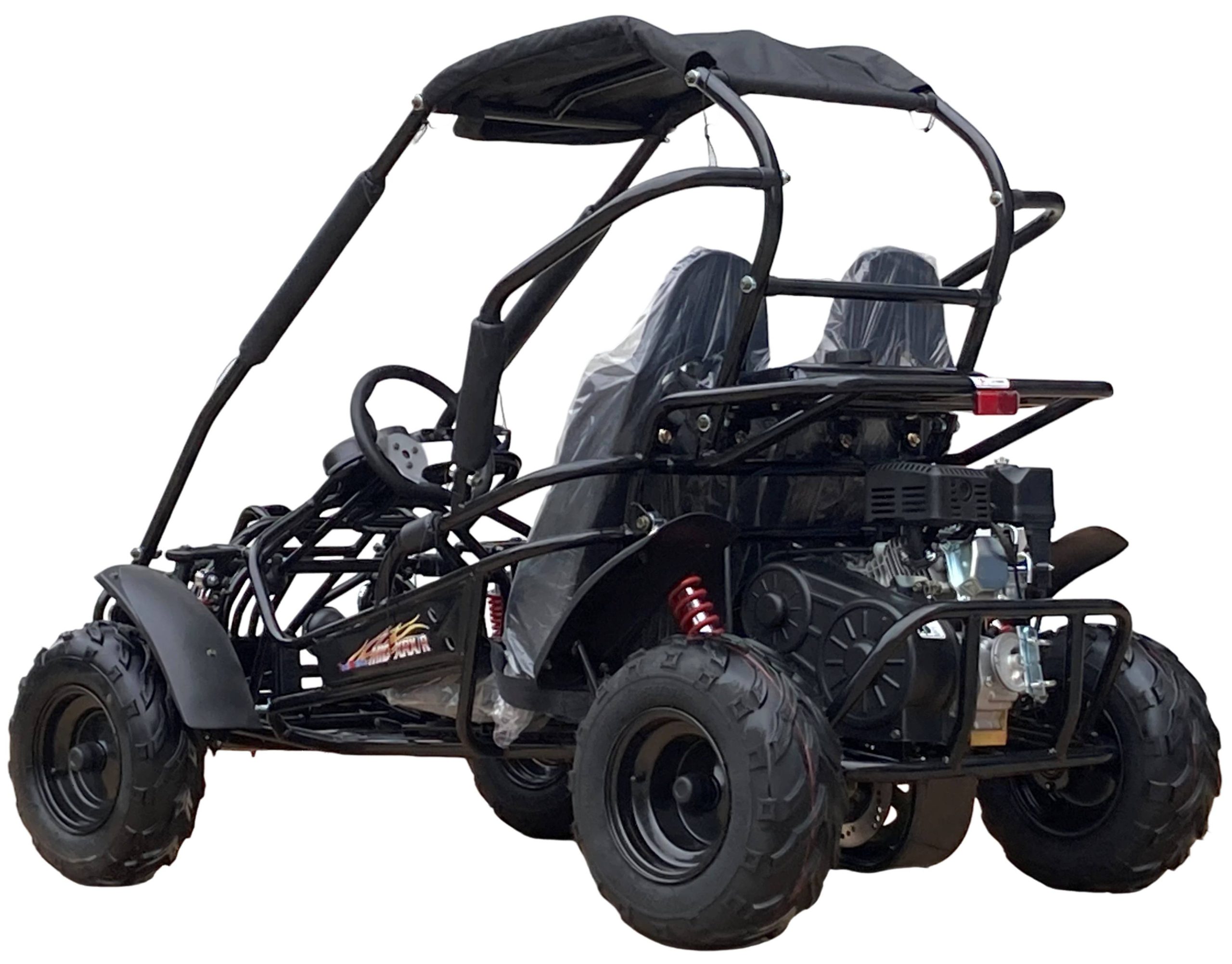

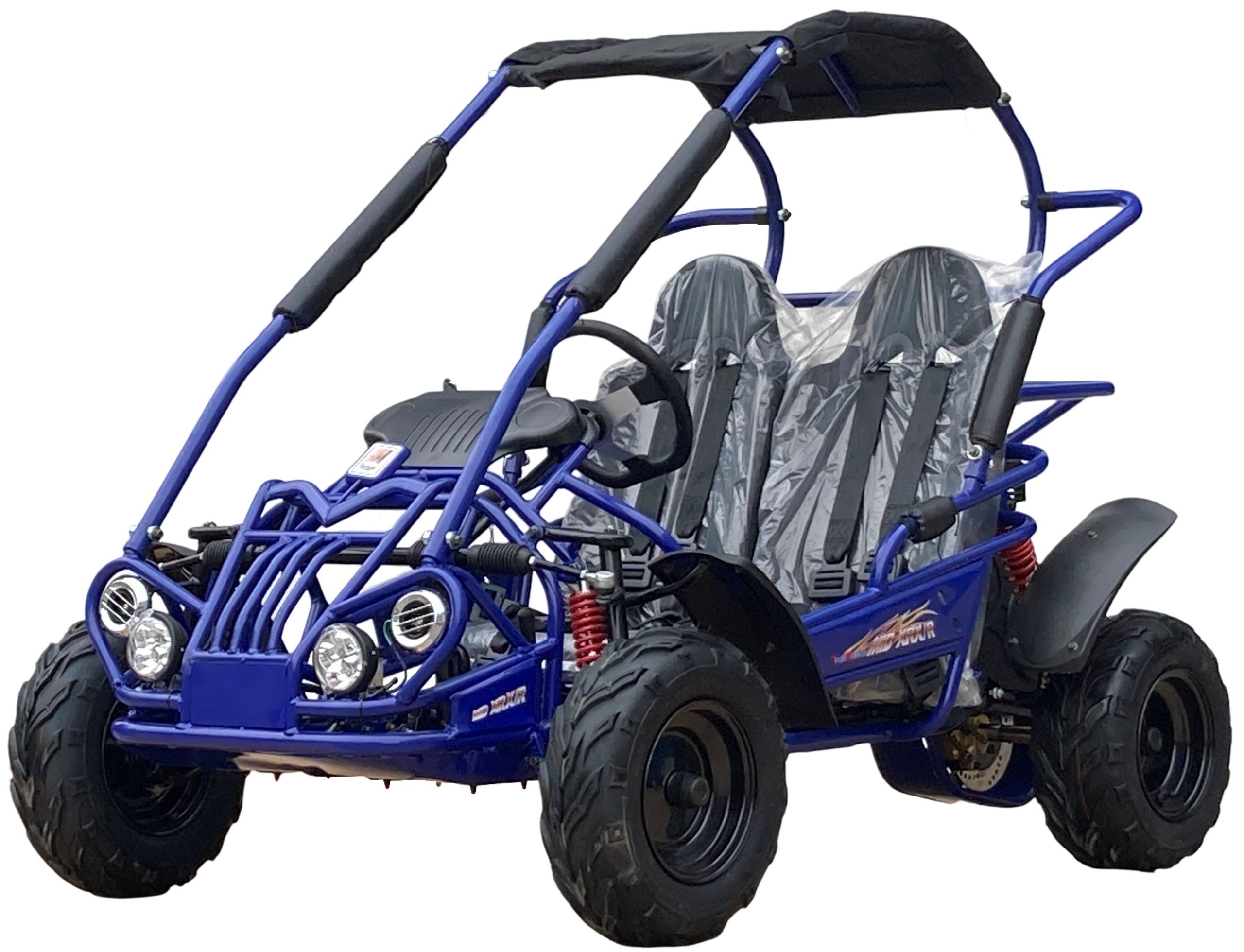

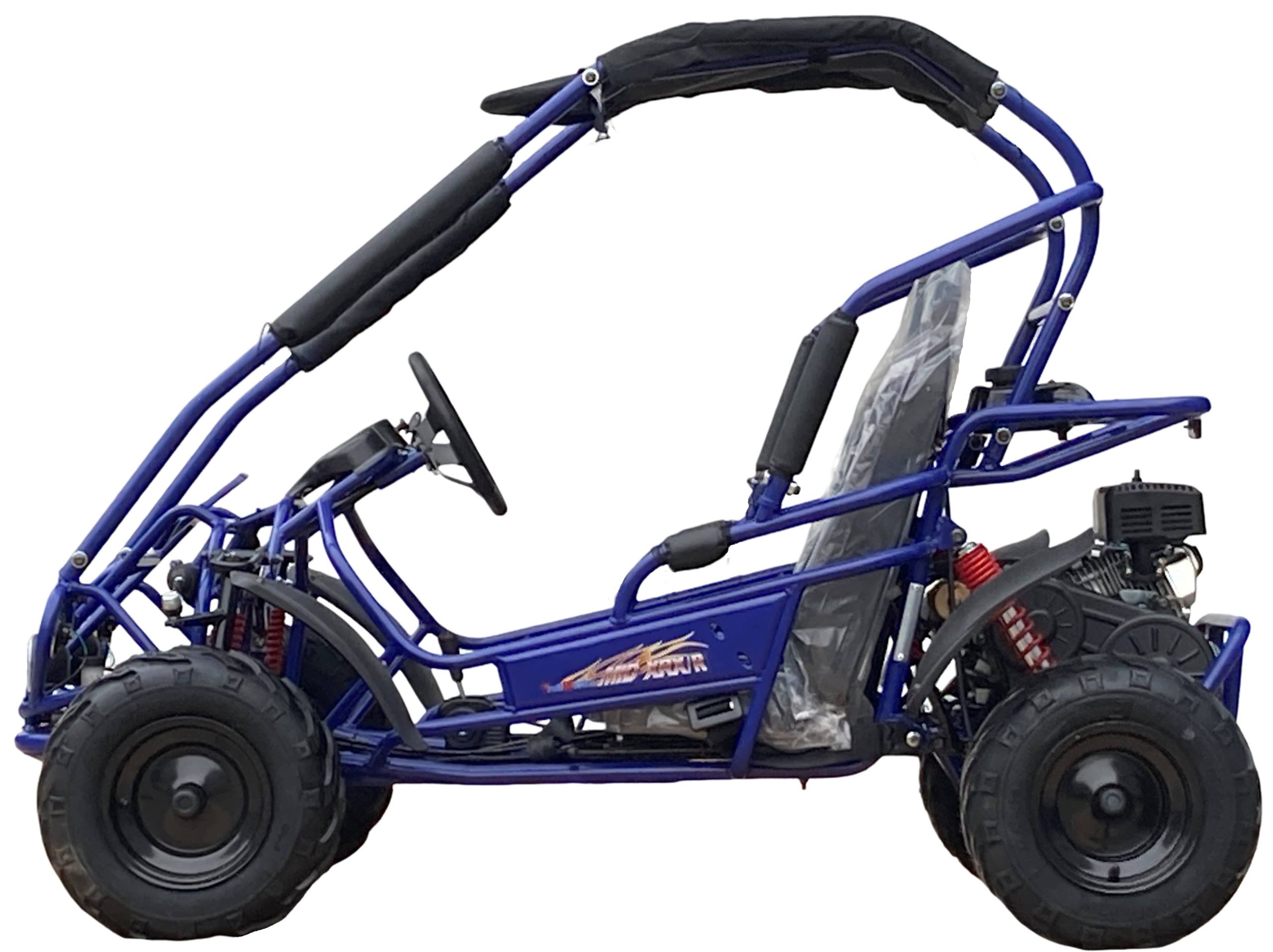

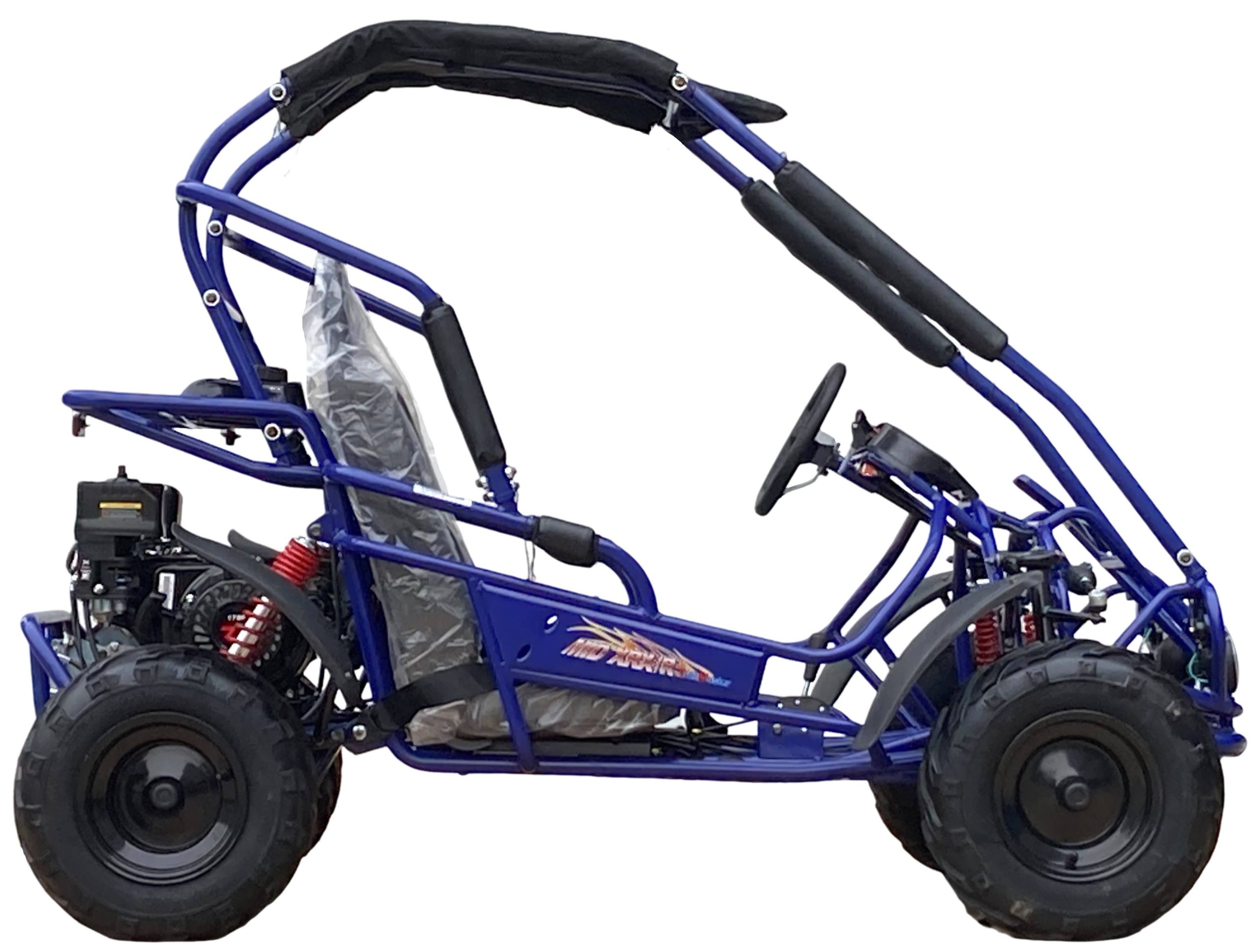

Mid XRX/R

Engine Information

EPA certificated

Engine type: 4-stroke, single cylinder, air cooled

Displacement: 212cc

Max HP: 7hp/3600rpm

Max torque: 12.5N·m/2500 r/min

Bore x stroke: ø70×55

Max speed: 31mph

Climbing ability: 12 degrees

Ignition: C.D.I

Starting system: Electric / Pull backup

Battery: 12V 9Ah

Carburetor brand: JF (RX)

Engine oil: SG15W-40

General Information

Clutch: Automatic CVT with reverse

Driveline / Driving wheel: Chain / Dual wheel drive

Suspension, F / R: Double A-arm / Double Oil Damped Shock

Brakes, F / R: No / Hydraulic brake, Disc

Tires, F / R: 16×6-8 / 16×7-8

Fuel capacity: 1 gal

Weight, G.W. / N.W.: 386 / 330 lbs

Max load: 400 lbs

Dimension Information

Wheelbase: 48.4 inches

OA L x W x H: 67×43.3×51.2 inches

Height to seat: 10.2 inches

Min ground clearance: 2.8 inches

Pedal to seat back distance: 34-39 inches

Key features:

Popular stylish design

Powerful 212cc 7HP OHV engine

Electric start with pull start backup, can start without battery

Fully automatic with reverse

Torque converter CVT system, more low-end torque

Canopy top

Manual choke operating from dashboard

5-Point safety harness seatbelt

LED headlight

Horn

All-wheel fenders

Big tires: F / R: 16×6-8 / 16×7-8

Rack and pinion steering wheel

Hydraulic disc brake

Padding over roll cage

Individual sporting seats

Adjustable driver seat: pedal to seat back adjustable from 34” to 39”

Easy assembling
