Project Description

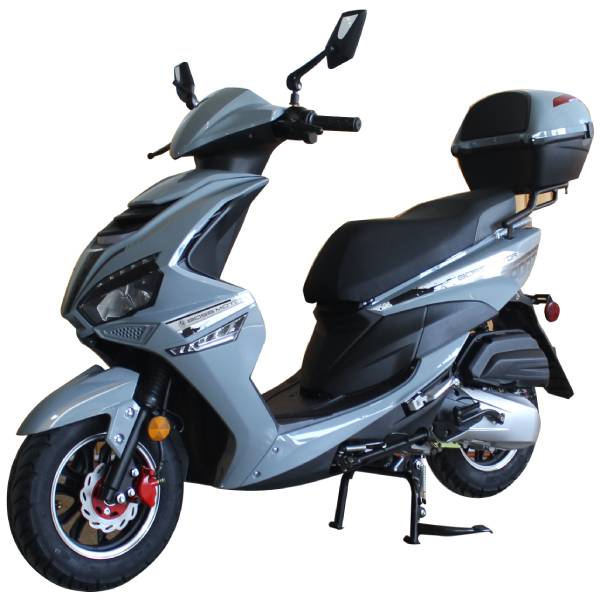

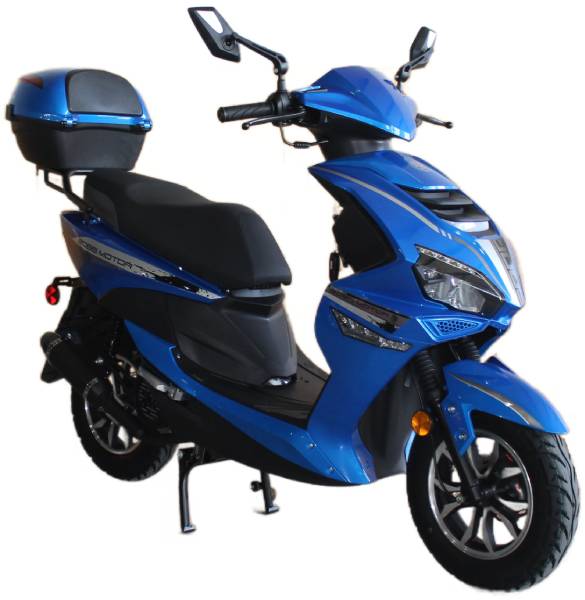

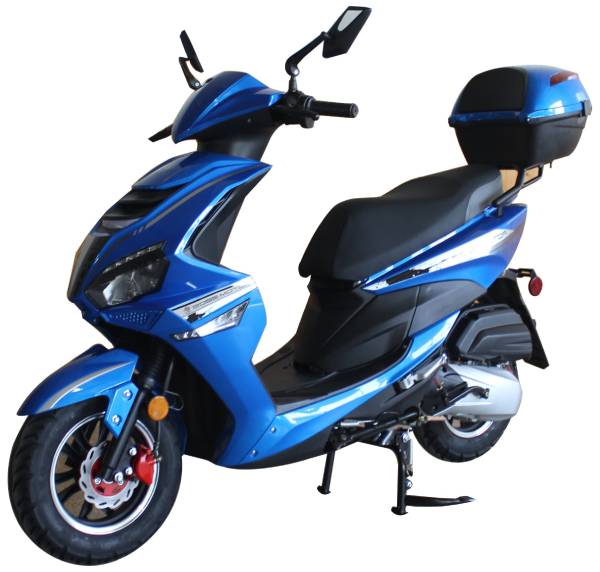

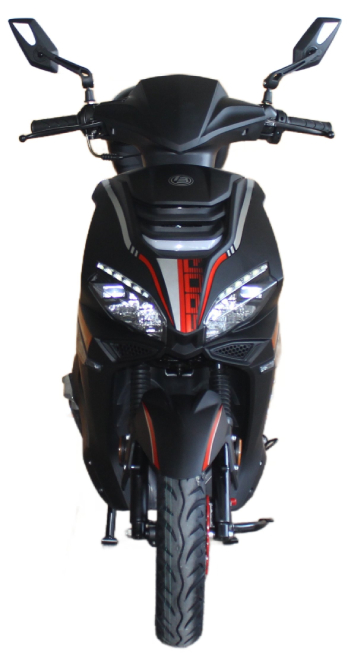

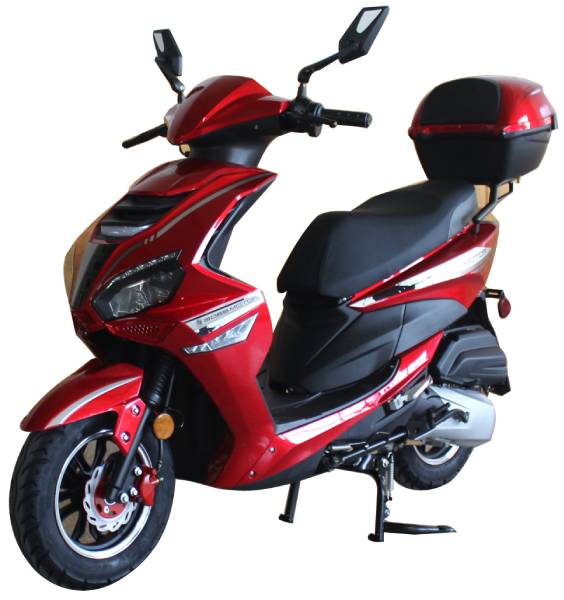

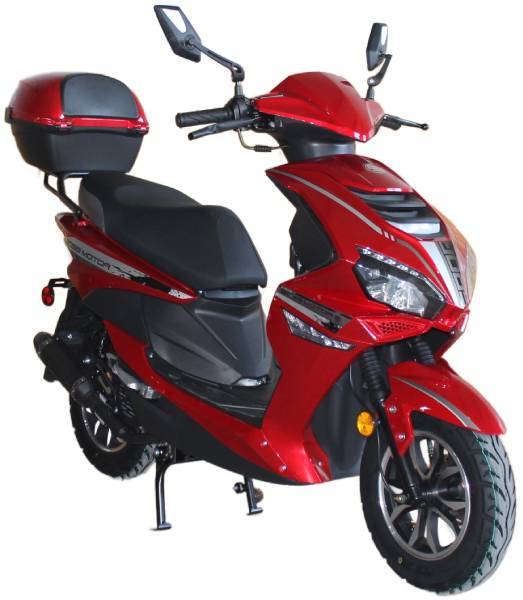

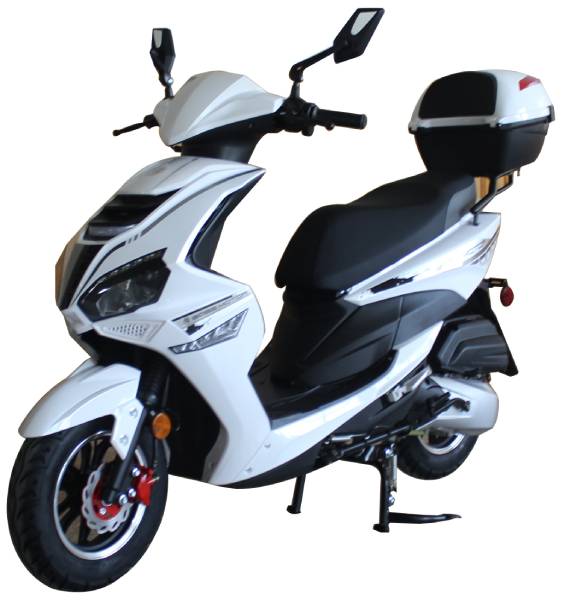

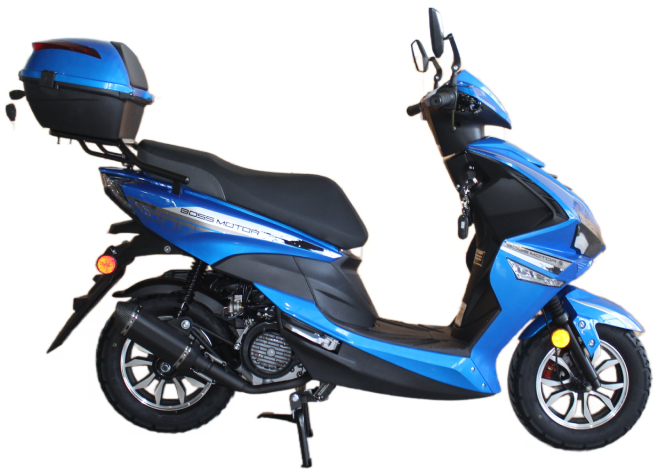

Gator 200-F9 ( 169cc,10” Tire)

**Bluetooth,MP3, Alarm & Remote,USB Plug**

Engine Type: 169CC,GY-6 Engine 4 Stroke,Single Cylinder

Cooling System: Air-Cooled

Starting System: Electric & Kick Start

Ignition: CDI

Spark Plug: A7RTC

Battery Type: 12V/7AH

Front Brake: Hydraulic Disc (180mm)

Rear Brake: Cable With Drum (Hub) (110mm)

Tire Size: Front/Rear 3.50-10,Tubeless

Wheel Size: Front/Rear 2.50×10 (Aluminum)

Fuel Tank Capacity: 4 L,

Fuel: Unleaded(87 Octane Or Hight)

Economical Oil Exhaust(L/100km): 3

Transmission: Belt Drive

Wheel Base: 1200MM (Aluminum Rim)

Frame: High Strength Ironic

Front/Rear Suspension:Telescopic Fork/Unit Swing

Compression Ratio: 10.5:1

Horsepower: 2.95 HP-7500 RPM

G.W: 243 LBS, N.W: 194 LBS

Length: 74.4 In, Width: 30.6 In, Height: 40.8 In

Seat Height: 31.7 In

Ground Clearance: 4.72”

Dry Weight: 76KG

Max Torque: 11N.M-6000 RPM

Maximum Power: 8.3KW/8000R/Min

Maximum Speed: 50-60MPH, 90KM/H

Product Dimension: 70”x28”x44”

Carton Dimension: 61”x23X33”

Color: Black,Blue,Burgandy,White,Grey
