Project Description

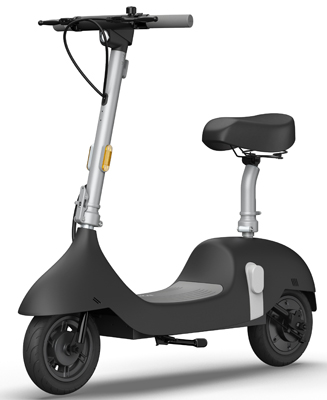

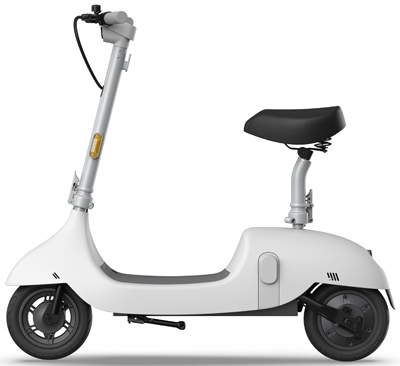

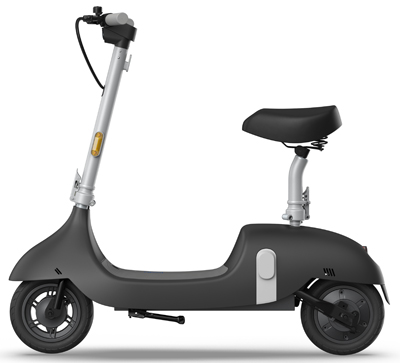

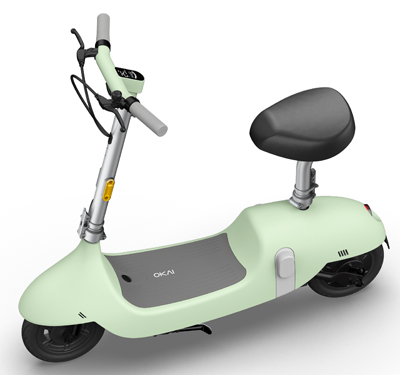

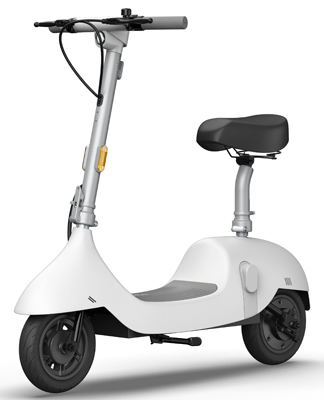

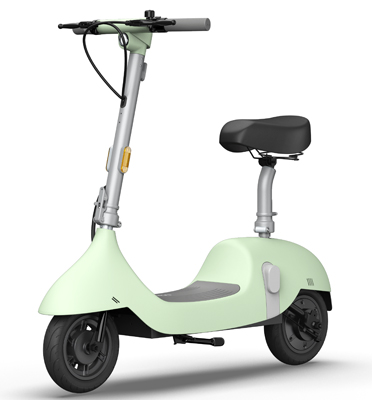

Beetle Pro (EA10C,Range 34miles)
Disclaimer: Every effort has been made to ensure the accuracy of the information provided. However, product specifications, configurations, and systems/components are subject to change with equal performance substitutes with out notice. Information will be updated when available.
| Model | OKAI Beetle Pro (EA10C) | ||
| Number | ITEM | ||
| 1 | Vehicle parameters | Expansion: LxWxH | 1145*533*1045mm?45.08*20.98*41.14inch? |

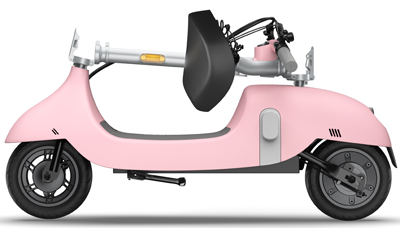

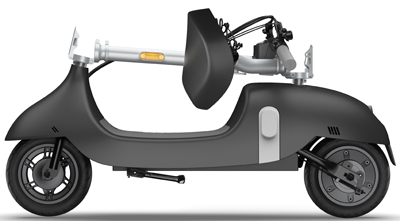

| 2 | Folding: LxWxH | 1145*554 *614mm?45.08*21.81*24.17inch? | |
| 3 | N.W. | 29kg?63.93lbs? | |
| 4 | Max Speed | 25km/h?15.5mph? | |
| 5 | Range | ≤55km?34.18miles? | |
| 6 | Max gradient | 20% | |
| 7 | Adapted terrain | Pavement | |
| 8 | Operating temperature | 0?40? | |
| 9 | Waterproof grade | IPX5 | |
| 10 | Charging time | 2A?6H?3A?4H | |
| 11 | Battery Parameter | Rated Voltage | 48V |
| 12 | Rated Capacity | 10.4Ah | |
| 13 | Battery (cell) Qty | 52Pcs | |
| 14 | Motor Parameter | Motor size | 10 inch |
| 15 | Max torque | 28N.m | |
| 16 | Rated Voltage | 48V | |
| 17 | Rated power | 350W | |
| 18 | Max power | 900W | |
| 19 | Motor control mode | Brushless gearless motor | |
| 20 | Brake | Brake stopping distance | 4.5m (14.76ft) |
| 21 | Brake mode | Front: mechanical drum brake Rear: mechanical drum brake + electronic brake | |
| 22 | Tires | Tire Size | Front : 10 inch Rear: 10 inch |
| 23 | Tire materials | Vacuum tires | |
| 24 | Charger | Input voltage | 100-240V |
| 25 | Output voltage | 54.6V | |
| 26 | Output current | 2A | |
| 27 | Rider | Max Load | 100kg?220.46lbs? |
| 28 | Recommended age | >14 years old | |
| 29 | Required height | 120-200cm?3.94-6.56ft? | |
| 30 | Features | Brake light | Light off/low light flashing alternately |
| 31 | Ride Mode | Zero start (Rear drive) | |
| 32 | Suspension Type | Rear Suspension | |
| 33 | Certification | 2019, FCC SDOC, Prop 65 Test Report | |
| 34 | Packing | Manner of packing | 1pc/ctn |
| 35 | G.W. | 33.5kg?73.85lbs? | |
| 36 | LxWxH | ? | |
| 37 | UPC Code | OKAI EA10C White US (48V)-UL | 608938952011 |
| 38 | OKAI EA10C Black US (48V)-UL | 608938952028 | |
| 39 | EA-EA10C-US-PNK-48V-UL | 608938952035 | |
| 40 | EA- EA10C Green US (48V)-UL | 810100340018 | |
| 41 | Description | OKAI Beetle Pro is designed with a new concept, just to bring you a perfect and comfortable riding experience like never before. The stylish exterior design and ergonomically designed high stretch compression seat will become a unique scenery on the road, and with the upgraded Beetle Pro goes farther and faster. 35 miles of range and 900W peak power will make your journey long again! | |
| 42 | Key Selling Points | 1. Stylish one-of-a kind design 2. Customers can paint and add decals to make a custom statement – D.I.Y. friendly! 3. The upgraded Beetle Pro goes further and faster:35-mile range 900w peak power | |
| 43 | Warranty | ——Three months warranty | |
| 44 | Setup Guide Video | https://www.youtube.com/watch?v=xhyxef_1bgk&t=136s | |
